A comprehensive range of products built specifically for AI data center deployments. MTP/MPO trunks, breakout harnesses, cassette modules, patch cords, and armored assemblies. 100% tested before shipment.
The connectivity backbone of every high-density AI GPU rack
| Fiber | OS2 9/125µm Singlemode |
|---|---|
| Connector | MTP® Female 24F |
| Type | TypeB straight-through |
| Jacket | Yellow OFNR 3.0mm round |
| IL / RL | ≤ 0.35 dB | ≥ 60 dB |
High-volume backbone cabling for AI data center builds
| Fiber | OS2 9/125µm Singlemode |
|---|---|
| Connector | MTP® Female 12F |
| Type | TypeA and TypeB |
| Jacket | Yellow OFNR 3.0mm round |
| IL / RL | ≤ 0.35 dB | ≥ 60 dB |
Short-reach multimode for 100G and 400G deployments
| Fiber | OM4 50/125µm Multimode — Erika Violet |
|---|---|
| Connector | MTP® Female 12F |
| Type | TypeB straight-through |
| Jacket | Erika Violet OFNR 3.0mm round |
| IL / RL | ≤ 0.35 dB | ≥ 20 dB |
Base-8 architecture for 400G QSFP-DD transceivers
| Fiber | OS2 9/125µm Singlemode |
|---|---|
| Connector | MTP® Female 8F |
| Type | Base-8 pinned and non-pinned |
| Jacket | Yellow OFNR 3.0mm round |
| IL / RL | ≤ 0.35 dB | ≥ 60 dB |
Fan-out from high-density MTP trunk to individual LC server ports
| Fiber | OS2 9/125µm and OM4 50/125µm |
|---|---|
| Connector | MTP Female trunk end + LC/UPC duplex fan-out legs |
| Type | MTP-24F→12×LC · MTP-12F→6×LC · MTP-8F→4×LC |
| Jacket | Round trunk + individual 2.0mm leg cords |
| IL / RL | ≤ 0.35 dB per path | ≥ 60 dB |
Install once. Every rack expansion is a reorder.
| Fiber | OS2 9/125µm and OM4 50/125µm |
|---|---|
| Connector | MTP-12F or MTP-24F rear input · LC duplex front output |
| Type | 12F and 24F · OS2 and OM4 variants |
| Jacket | 1RU standard module housing |
| IL / RL | ≤ 0.35 dB per path | ≥ 60 dB |
Complete connector compatibility in durable one-piece housings
| LC Adaptors | MU5 Series · Stainless clip · Flange or flangeless |
|---|---|
| SC Adaptors | Simplex or duplex · Flange or flangeless |
| ST Adaptors | Metal housing |
| FC Adaptors | Zirconia ceramic sleeve |
| MTP/MPO Adaptors | Type A/B keyed |
Steel-armored protection for demanding DC environments
| Fiber | OS2 9/125µm and OM4 50/125µm |
|---|---|
| Connector | LC/UPC duplex |
| Type | Steel interlocked armor + LSZH outer jacket |
| Jacket | 4.0mm armored round |
| IL / RL | ≤ 0.35 dB | ≥ 60 dB |
Any spec. Any length. Your labeling.
| Fiber | All types including G.657A2 bend-insensitive and OM5 wideband multimode |
|---|---|
| Connector | Any connector type or combination |
| Type | LSZH plenum · Pre-tested with PDF cert |
| Jacket | OFNR / OFNP / LSZH / Armored — your choice |
| IL / RL | Per project spec |
Factory-terminated pigtails for splicing into cable runs or panel termination.
| Construction | Simplex or duplex |
|---|---|
| Fiber | OS1/OS2 single mode and OM multimode |
| Application | Cable-run splicing and panel termination |
Tool-free polarity exchange without exposing fibers.
| Connector | Duplex LC-LC uniboot |
|---|---|
| Polarity | Tool-free reverse polarity |
| Cable | 1.6mm |
| Polish | PC · SPC · UPC · APC |

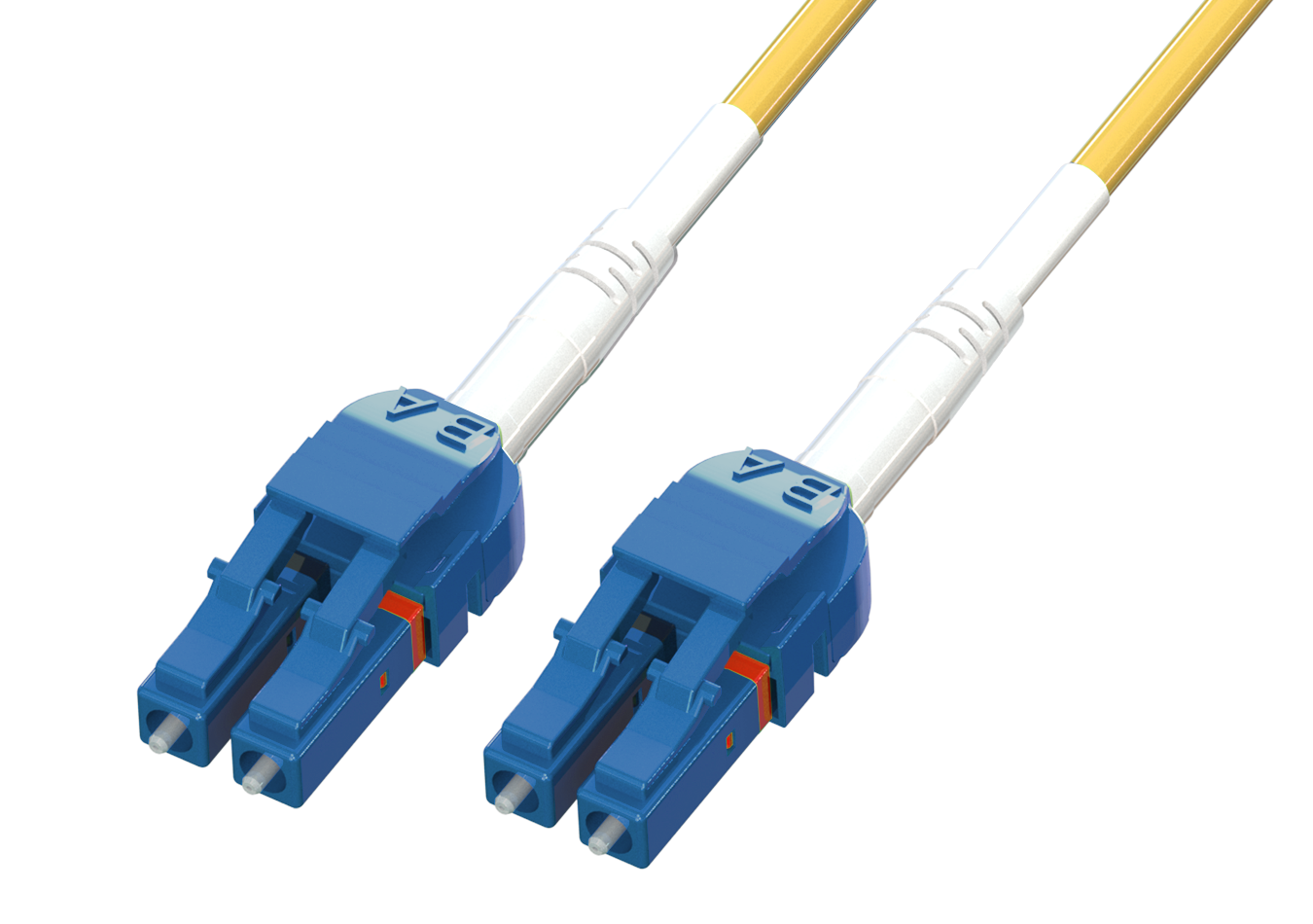

Carries both fibers of a duplex link in one jacket for cleaner high-density routing.
| Connector | LC duplex uniboot |
|---|---|
| Fiber | OS1/OS2 single mode and OM multimode |
| Construction | Two fibers in one jacket |

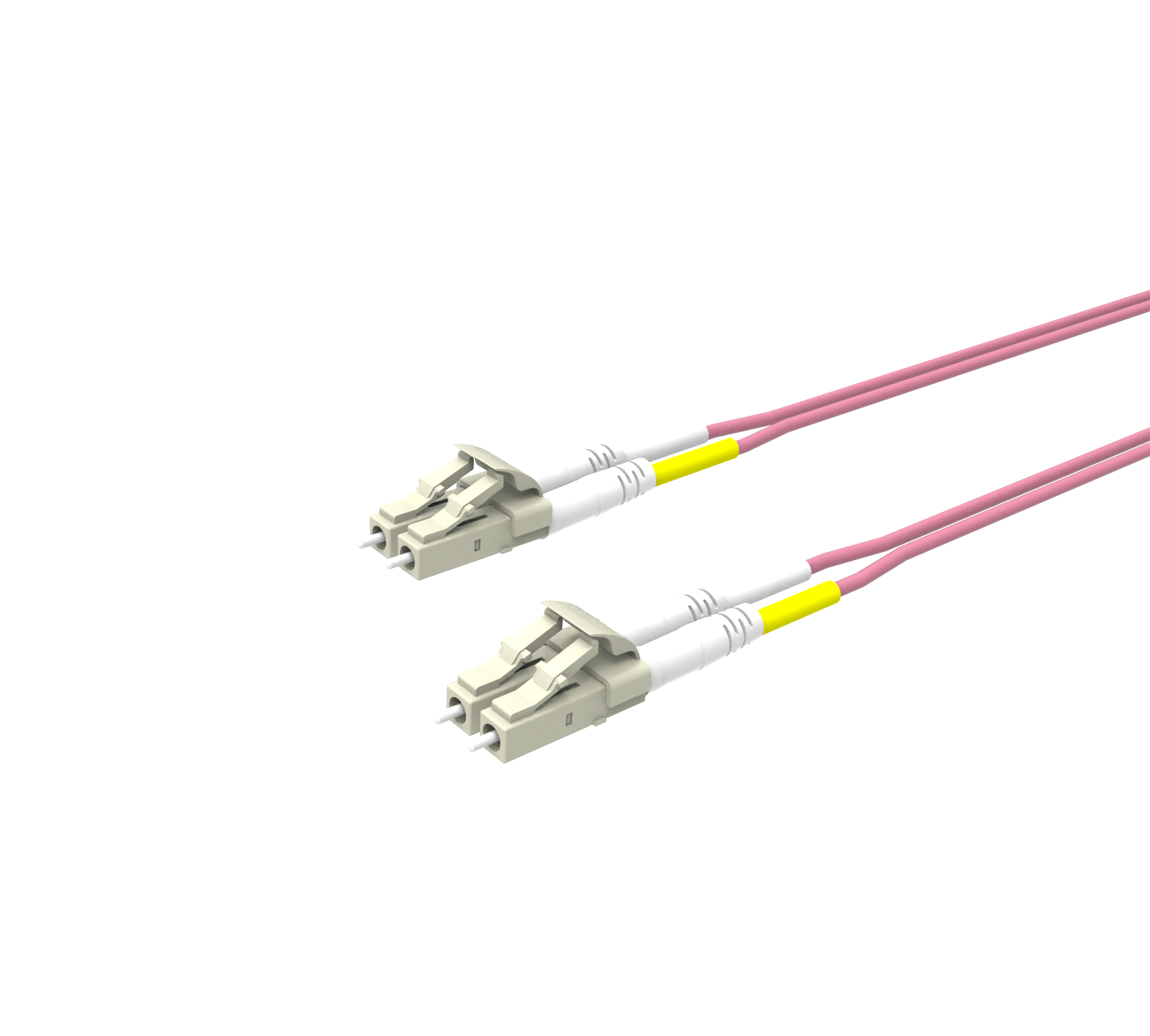

Reduced connector length for high-density panels and cassettes.
| Connector | Short-body LC boot |
|---|---|
| Construction | Simplex or duplex |
| Application | High-density panels and cassettes |
Uniboot cable with push-pull extractor for confined spaces.
| Construction | Uniboot |
|---|---|
| Extractor | Push-pull |
| Boot | Rotating |

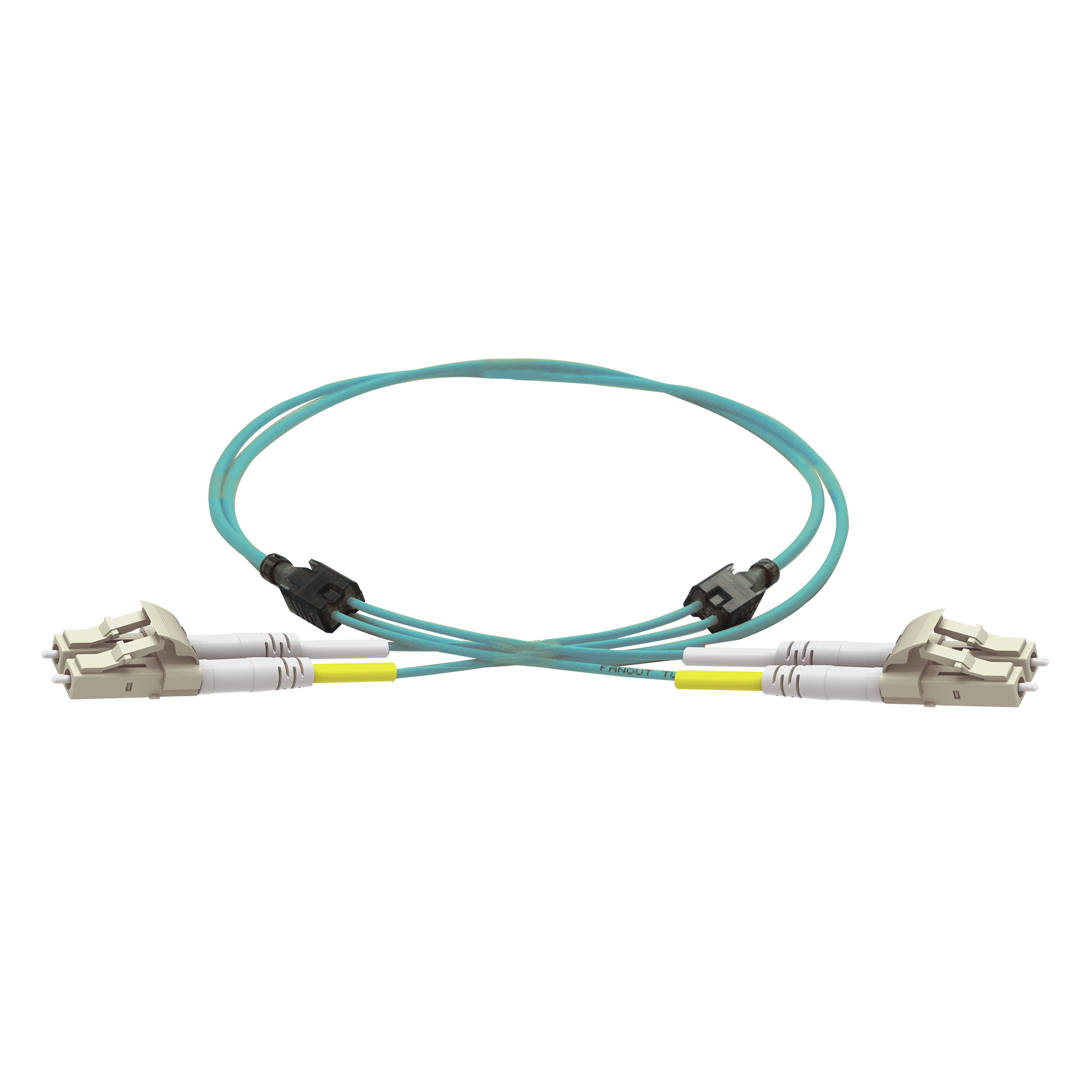

LED identification helps technicians trace individual fiber or copper patch cords.
| Connector Options | ST · FC · SC · LC · MTP/MPO |
|---|---|
| Identification | Integrated LED visual tracing |
| Application | Fiber and copper patch cord identification |
Compact one-to-many breakout cable for space-constrained fiber infrastructure.
| Fiber Count | 12 fibers |
|---|---|
| Core | 0.25mm |
| Outer Diameter | 3.0mm |

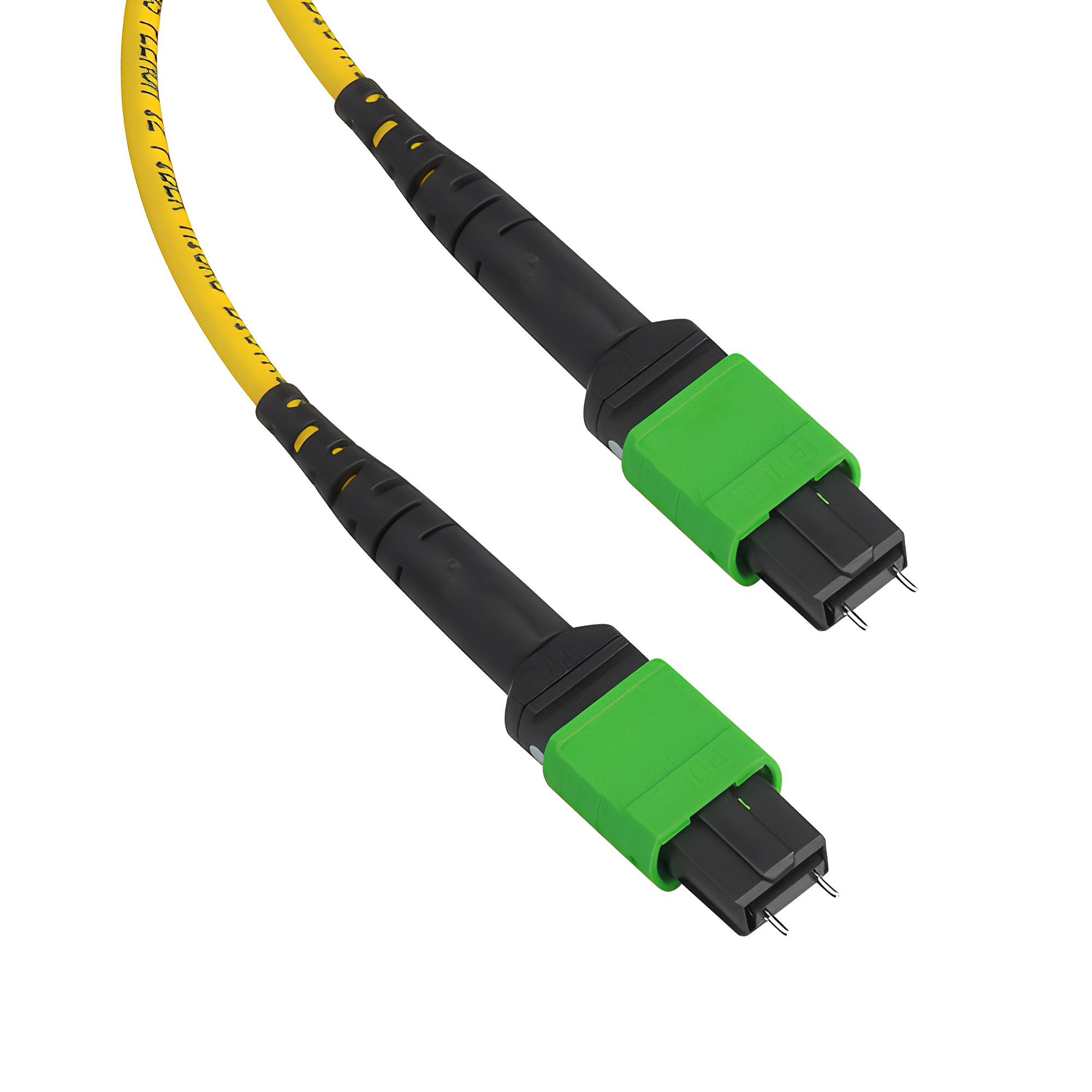

Pre-terminated array assemblies for data centers.
| Assembly | MTP/MPO jumpers and fanouts |
|---|---|
| Fiber | Single mode or multimode |
| Application | Data center high-density connectivity |
High-fiber-count trunk assembly for rapid backbone deployment.
| Fiber Count | Up to 288 fibers |
|---|---|
| Construction | Pre-terminated trunk harness |
| Application | Rapid backbone deployment |

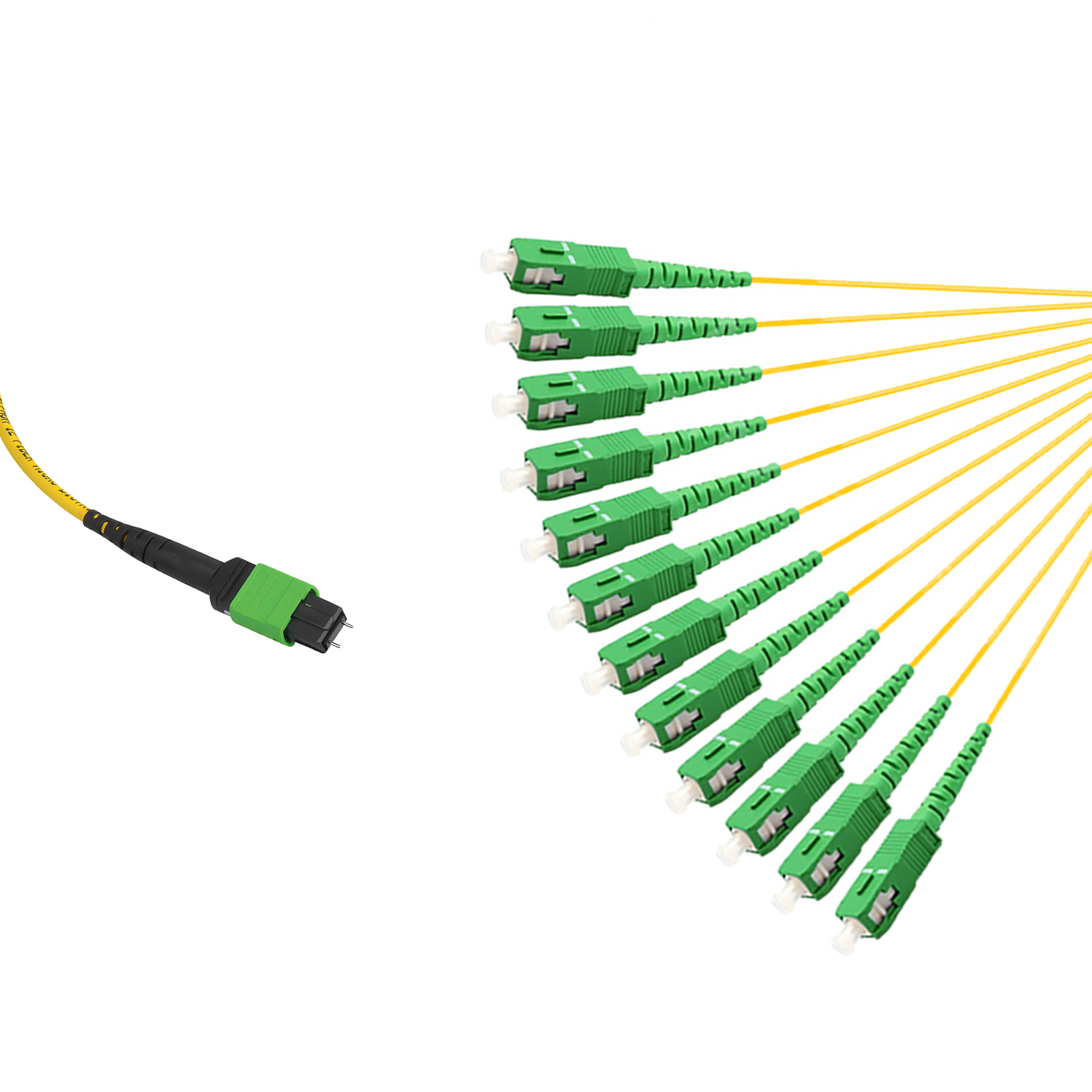

Transitions MTP/MPO trunk connections to individual fiber connectors.
| Trunk Connector | MTP/MPO |
|---|---|
| Breakout Options | ST · SC · FC · LC |
| Application | Trunk-to-individual connector transition |
Protected routing for high-density patching and faster maintenance.
| Armor | 3.0mm spiral armored |
|---|---|
| Connector | LC or SC |
| Single Mode | APC or UPC |
| Multimode | OM3 or OM4 |

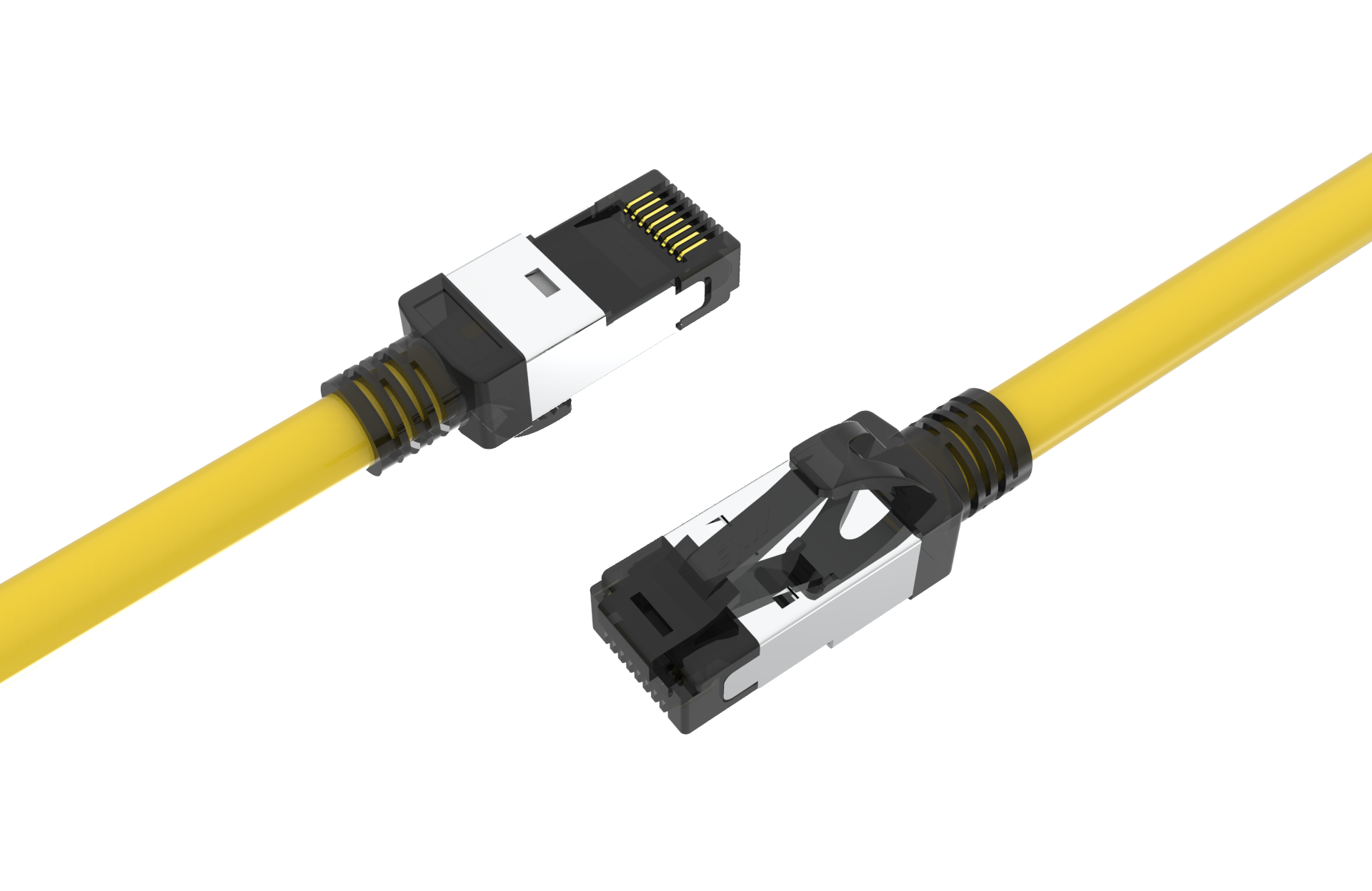

High-performance copper connectivity for 25G and 40G links.
| Conductor | 24/7 AWG stranded |
|---|---|
| Verification | GHMT-verified CAT8 |
| Application | 40GBASE-T / 25GBASE-T |
| Reach | Up to 30m |
Built-in visual tracing for faster cable identification.
| Categories | Cat.6 / Cat.6A |
|---|---|
| Construction | S/FTP or U/UTP |
| Identification | Built-in LED |
| Trace Time | 20–40 seconds |
Color-identifiable copper patching across common category ratings.
| Categories | Cat.5E through Cat.6A |
|---|---|
| Identification | 7 color-clip options |
| Connector | Gold-plated RJ45 |
Reduced cable diameter for dense copper patching.
| Categories | Cat.5E through Cat.6A |
|---|---|
| Profile | Reduced diameter |
| Identification | Color-clip system |
Color-coded patching for clear port and circuit identification.
| Categories | Cat.5E through Cat.6A |
|---|---|
| Identification | 7 color options |
| Application | Structured copper patching |

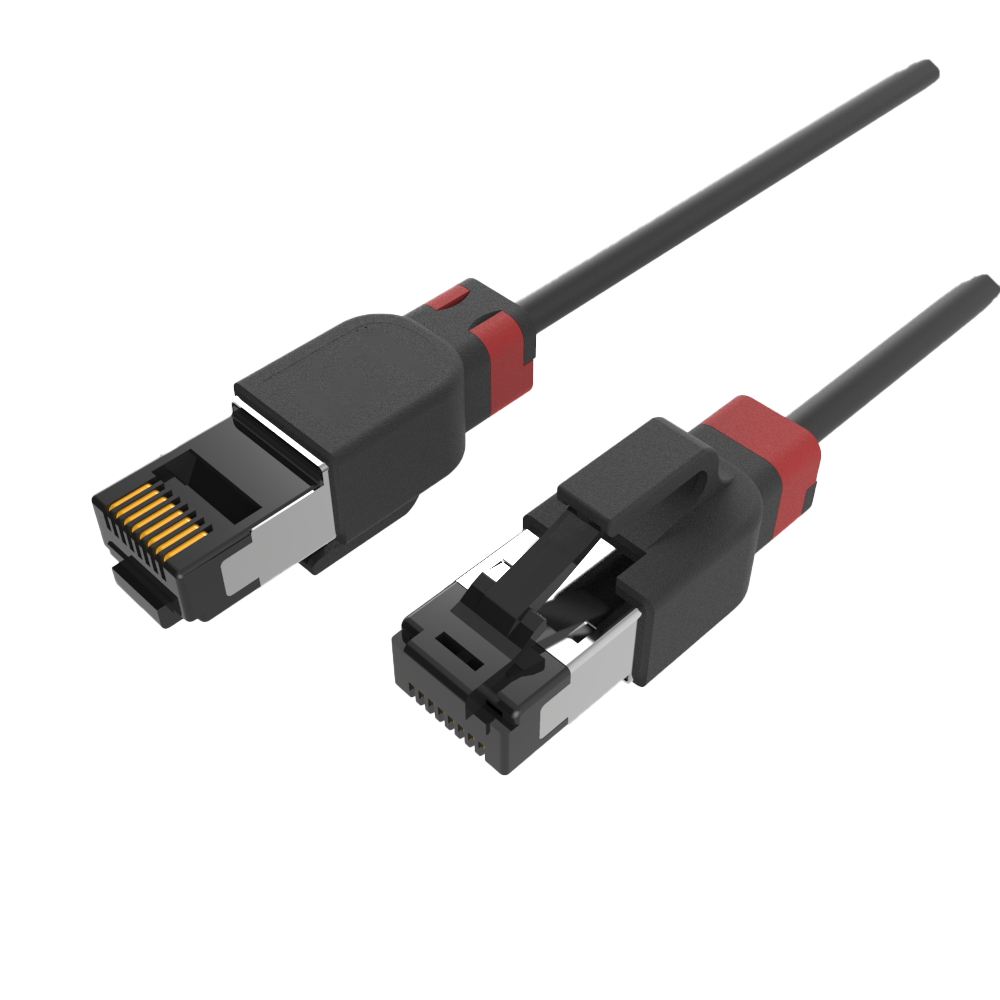

Slim-profile copper patching with flexible color identification.
| Categories | Cat.5E through Cat.6A |
|---|---|
| Profile | Slim |
| Identification | Color clip |
Rotating identification clip for flexible cable orientation.
| Categories | Cat.6 / Cat.6A |
|---|---|
| Identification | Rotatable ID clip |
| Application | Dense rack and cabinet patching |
Copper patching designed for environments with heightened hygiene requirements.
| Categories | Cat.5E through Cat.6A |
|---|---|
| Material | Antibacterial construction |
| Documentation | ISO 22196 documentation available |

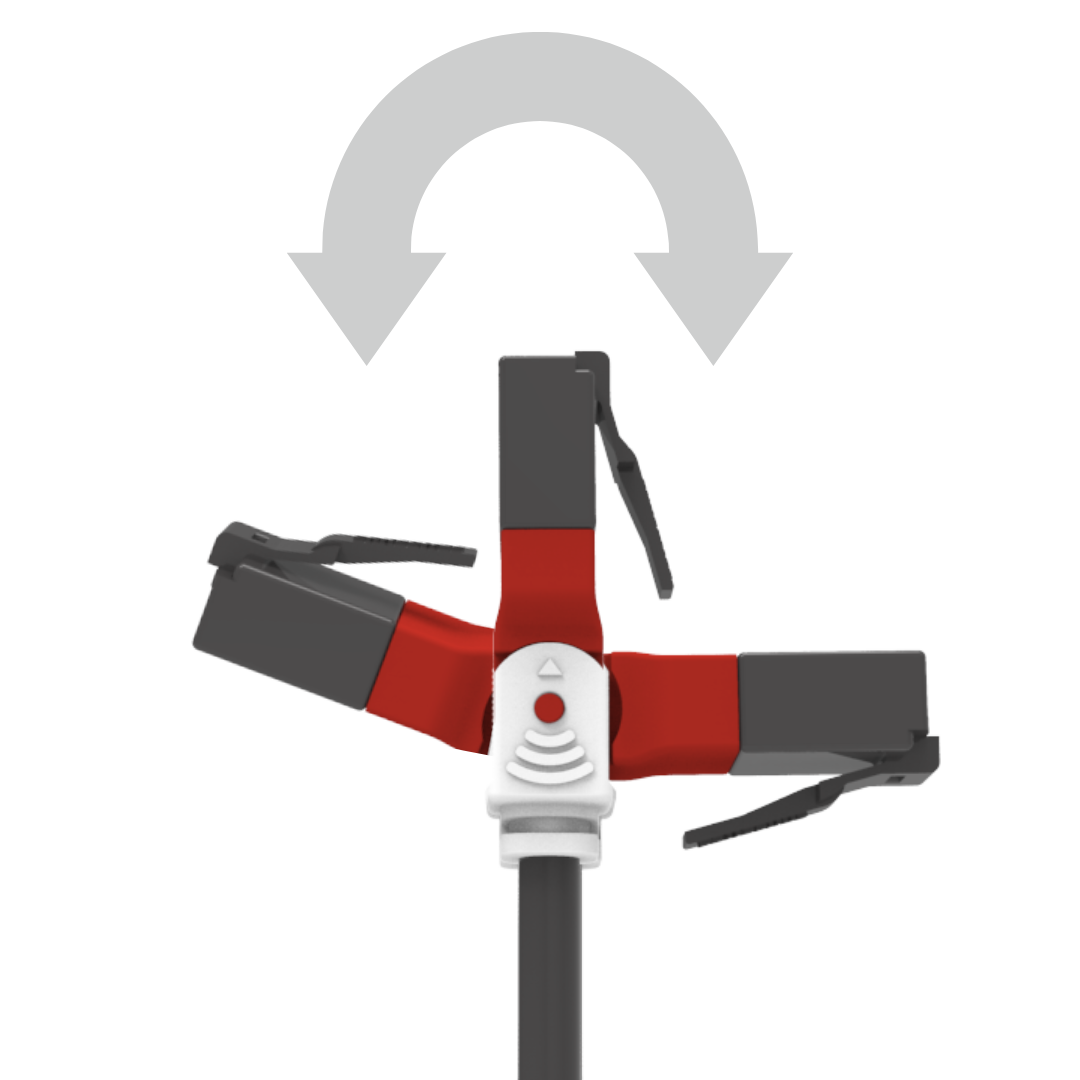

Slim copper patching with a rotatable connector design.
| Category | Cat.6 |
|---|---|
| Construction | U/UTP |
| Conductor | 28AWG |
| Design | Rotatable |
Every Kaboi product is built to ANSI/TIA-568.3-D, 100% tested before shipment, and built specifically for high-density AI data center deployments. MTP/MPO trunks, breakout harnesses, cassette modules — the three products every AI rack needs, from a single certified source.
Request a Quote →%20rotate(45)'%3e%3crect%20x='0'%20y='0'%20width='18'%20height='95'%20rx='2'%20fill='%23F26522'/%3e%3crect%20x='28'%20y='0'%20width='18'%20height='95'%20rx='2'%20fill='%23F26522'/%3e%3crect%20x='56'%20y='0'%20width='18'%20height='95'%20rx='2'%20fill='%23F26522'/%3e%3crect%20x='84'%20y='0'%20width='18'%20height='95'%20rx='2'%20fill='%23F26522'/%3e%3c/g%3e%3c/svg%3e)
